First we take a look at some usage scenarios for our Order class, and a simple way to do this is using a unit test.

In the testNormalFlow() we first set up the order (without address or paymentReceived , we would run into some checks in our system). Then we verify the state via a method meant to generate output. Then manipulate the order as intended (add items, confirm, send out, delivered).

Then we try something we know should not be permitted: canceling an order that has already been sent out. We expect an exception to be thrown.

package be.ooxs.examples.designpatterns.state;

import static org.junit.Assert.assertEquals;
import static org.junit.Assert.assertTrue;
import static org.junit.Assert.fail;

import java.util.Arrays;

import org.junit.Before;
import org.junit.Test;

public class UTestOrder {
	private Order order;
	private Address address;
	private Item usbCable;
	private Item printPaper;

	@Before
	public void instantiateFixtures() {
		order = new Order();

		address = new Address();
		address.setLines(Arrays.asList("Mr S. Claus", "Northpole 1A", "Arctica"));

		usbCable = createItem("1230010", "USB Cable (5.0m)");
		printPaper = createItem("1230030", "A4 paper (500 p)");
	}

	private Item createItem(String id, String name) {
		Item item = new Item();
		item.setName(name);
		item.setProductId(id);
		return item;
	}

	@Test
	public void testNormalFlow() {
		order.setAddress(address);
		order.setPaymentReceived(true);
		order.addItem(usbCable, 4);
		order.addItem(printPaper, 20);

		assertEquals("Open", order.whatIsTheState());
		order.confirmOrder();
		assertEquals("Ordered", order.whatIsTheState());
		order.orderSendOut("555555X");
		assertEquals("Send", order.whatIsTheState());
		order.orderDelivered();
		assertEquals("Delivered", order.whatIsTheState());
		assertTrue(order.isFinished());
	}

	@Test
	public void disruptedFlow_cancelSend() {
		order.setAddress(address);
		order.setPaymentReceived(true);
		order.addItem(usbCable, 4);

		order.confirmOrder();
		order.orderSendOut("555555X");
		try {
			order.cancel();
			fail("Once an order is sent, it can not be canceled anymore.");
		} catch (RuntimeException exception) {
			assertTrue("Expected exception caught", true);
		}
	}
}

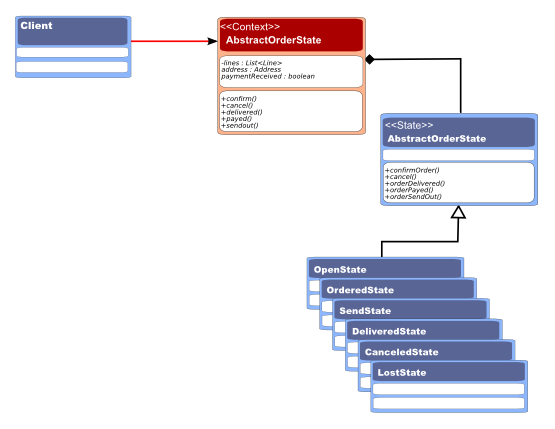

Now, let's take a look at the most important classes to understand the basic structure of this implementation: Order , Line and Item that are used to model an order and AbstractOrderState as the delegate for state dependant behavior.

package be.ooxs.examples.designpatterns.state;

import java.util.ArrayList;
import java.util.List;

public class Order {
	private AbstractOrderState orderState = new OpenState(this);
	private List<Line> lines = new ArrayList<Line>();
	private Address address;
	private boolean paymentReceived;

	/**
	 * Just for visualizing in test/UI
	 */
	public String whatIsTheState() {
		return orderState.getStateDescription();
	}

	public List<Line> getLines() {
		return lines;
	}

	public void setLines(List<Line> lines) {
		this.lines = lines;
	}

	public Address getAddress() {
		return address;
	}

	public void setAddress(Address address) {
		this.address = address;
	}

	public boolean isPaymentReceived() {
		return paymentReceived;
	}

	public void setPaymentReceived(boolean paymentReceived) {
		this.paymentReceived = paymentReceived;
	}

	public void addItem(Item item, int quantity) {
		orderState = orderState.addItem(item, quantity);
	}

	public void cancel() {
		orderState = orderState.cancel();
	}

	public void confirmOrder() {
		orderState = orderState.confirmOrder();
	}

	public void orderDelivered() {
		orderState = orderState.orderDelivered();
	}

	public void orderPayed() {
		orderState = orderState.orderPayed();
	}

	public void orderSendOut(String parcelNumber) {
		orderState = orderState.orderSendOut(parcelNumber);
	}

	public boolean isFinished() {
		return orderState.isFinished();
	}

}

Item represents packagings of a product that can be ordered:

package be.ooxs.examples.designpatterns.state;

public class Item {
	private String name;
	private String productId;

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public String getProductId() {
		return productId;
	}

	public void setProductId(String productId) {
		this.productId = productId;
	}
}

A Line is what would appear as a line on an order form: an item and a quantity.

package be.ooxs.examples.designpatterns.state;

public class Line {
	private Item item;
	private int quantity;

	public Line(Item item, int quantity) {
		super();
		this.item = item;
		this.quantity = quantity;
	}

	public Item getItem() {
		return item;
	}

	public int getQuantity() {
		return quantity;
	}

}

Our abstract super class for states implements every method by throwing an exception, subclasses enable these methods by overriding them. You could do this differently, of course...

package be.ooxs.examples.designpatterns.state;

public abstract class AbstractOrderState {
	private Order order;

	public AbstractOrderState(Order order) {
		super();
		this.order = order;
	}

	public Order getOrder() {
		return order;
	}

	protected abstract String getStateDescription();

	public AbstractOrderState addItem(Item item, int quantity) {
		throw new IllegalStateException("Can not add items to an order when the order is " + getStateDescription());
	}

	public AbstractOrderState confirmOrder() {
		throw new IllegalStateException("Can not confirm an order when the order is " + getStateDescription());
	}

	public AbstractOrderState cancel() {
		throw new IllegalStateException("Can not cancel an order when the order is " + getStateDescription());
	}

	public AbstractOrderState orderSendOut(String parcelNumber) {
		throw new IllegalStateException("Can not send an order when the order is " + getStateDescription());
	}

	public AbstractOrderState orderLost() {
		throw new IllegalStateException("Can not lose an order when the order is " + getStateDescription());
	}

	public AbstractOrderState orderFound() {
		throw new IllegalStateException("Can not find a lost order when the order is " + getStateDescription());
	}

	public AbstractOrderState orderDelivered() {
		throw new IllegalStateException("Can not deliver an order when the order is " + getStateDescription());
	}

	public AbstractOrderState orderPayed() {
		throw new IllegalStateException("Can not pay an order when the order is " + getStateDescription());
	}

	public boolean isFinished() {
		return false;
	}
}

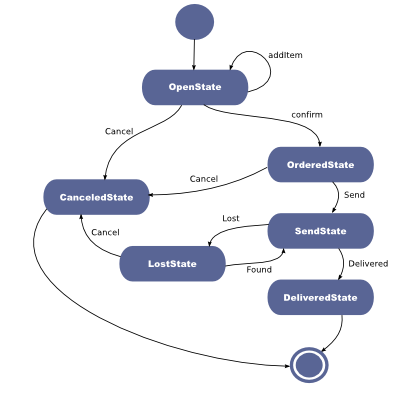

Here are the concrete implementations, note that each concrete state determines which state will be it's successor. E.g. after a confirmOrder() we can go to a CanceledState or an OrderedState depending on the internal "state" (or "data") of the Order instance we're working with.

package be.ooxs.examples.designpatterns.state;

public class OpenState extends AbstractOrderState {

	public OpenState(Order order) {
		super(order);
	}

	@Override
	protected String getStateDescription() {
		return "Open";
	}

	@Override
	public AbstractOrderState addItem(Item item, int quantity) {
		getOrder().getLines().add(new Line(item, quantity));
		return this;
	}

	@Override
	public AbstractOrderState confirmOrder() {
		if (getOrder().getLines().isEmpty()) {
			//we could throw an exception instead...
			return new CanceledState(getOrder());
		} else if (getOrder().getAddress() == null) {
			throw new IllegalStateException("An address is needed before the order can be confirmed.");
		}
		return new OrderedState(getOrder());
	}

	@Override
	public AbstractOrderState cancel() {
		return new CanceledState(getOrder());
	}

}

The OrderedState is when the order has been confirmed and our warehouse is in the process of ordering items, assembling the order etc.

package be.ooxs.examples.designpatterns.state;

public class OrderedState extends AbstractOrderState {

	public OrderedState(Order order) {
		super(order);
	}

	@Override
	protected String getStateDescription() {
		return "Ordered";
	}

	@Override
	public AbstractOrderState cancel() {
		return new CanceledState(getOrder());
	}

	@Override
	public AbstractOrderState orderSendOut(String parcelNumber) {
		if (!getOrder().isPaymentReceived()) {
			throw new IllegalStateException("An order should not be send out when payment is not received.");
		}
		return new SendState(getOrder());
	}

}

The SendState is used when our parcels have left our control and are in the good care of a courier or postal service:

package be.ooxs.examples.designpatterns.state;

public class SendState extends AbstractOrderState {

	public SendState(Order order) {
		super(order);
	}

	@Override
	protected String getStateDescription() {
		return "Send";
	}

	@Override
	public AbstractOrderState orderLost() {
		return new LostState(getOrder());
	}

	@Override
	public AbstractOrderState orderDelivered() {
		return new DeliveredState(getOrder());
	}

}

The DeliveredState is when we had confirmation by the courier or postal service that the package has been delivered.

package be.ooxs.examples.designpatterns.state;

public class DeliveredState extends AbstractOrderState {

	public DeliveredState(Order order) {
		super(order);
	}

	@Override
	protected String getStateDescription() {
		return "Delivered";
	}

	public boolean isFinished() {
		return true;
	}
}

The CanceledState can be reached by different paths, e.g. when a customer cancels his order before confirming it.

package be.ooxs.examples.designpatterns.state;

public class CanceledState extends AbstractOrderState {

	public CanceledState(Order order) {
		super(order);
	}

	@Override
	protected String getStateDescription() {
		return "Canceled";
	}

	public boolean isFinished() {
		return true;
	}
}

The LostState is when the courier notifies us of a lost package.

package be.ooxs.examples.designpatterns.state;

public class LostState extends AbstractOrderState {

	public LostState(Order order) {
		super(order);
	}

	@Override
	protected String getStateDescription() {
		return "Lost";
	}

	@Override
	public AbstractOrderState cancel() {
		return new CanceledState(getOrder());
	}

	@Override
	public AbstractOrderState orderDelivered() {
		return new DeliveredState(getOrder());
	}

}
